Product description

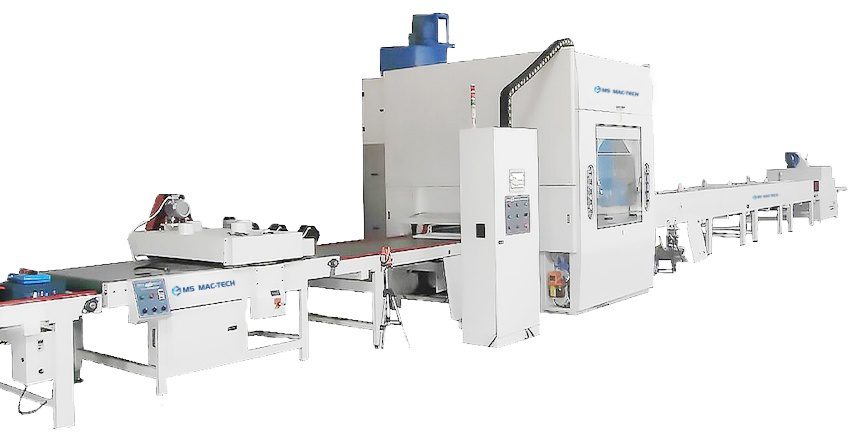

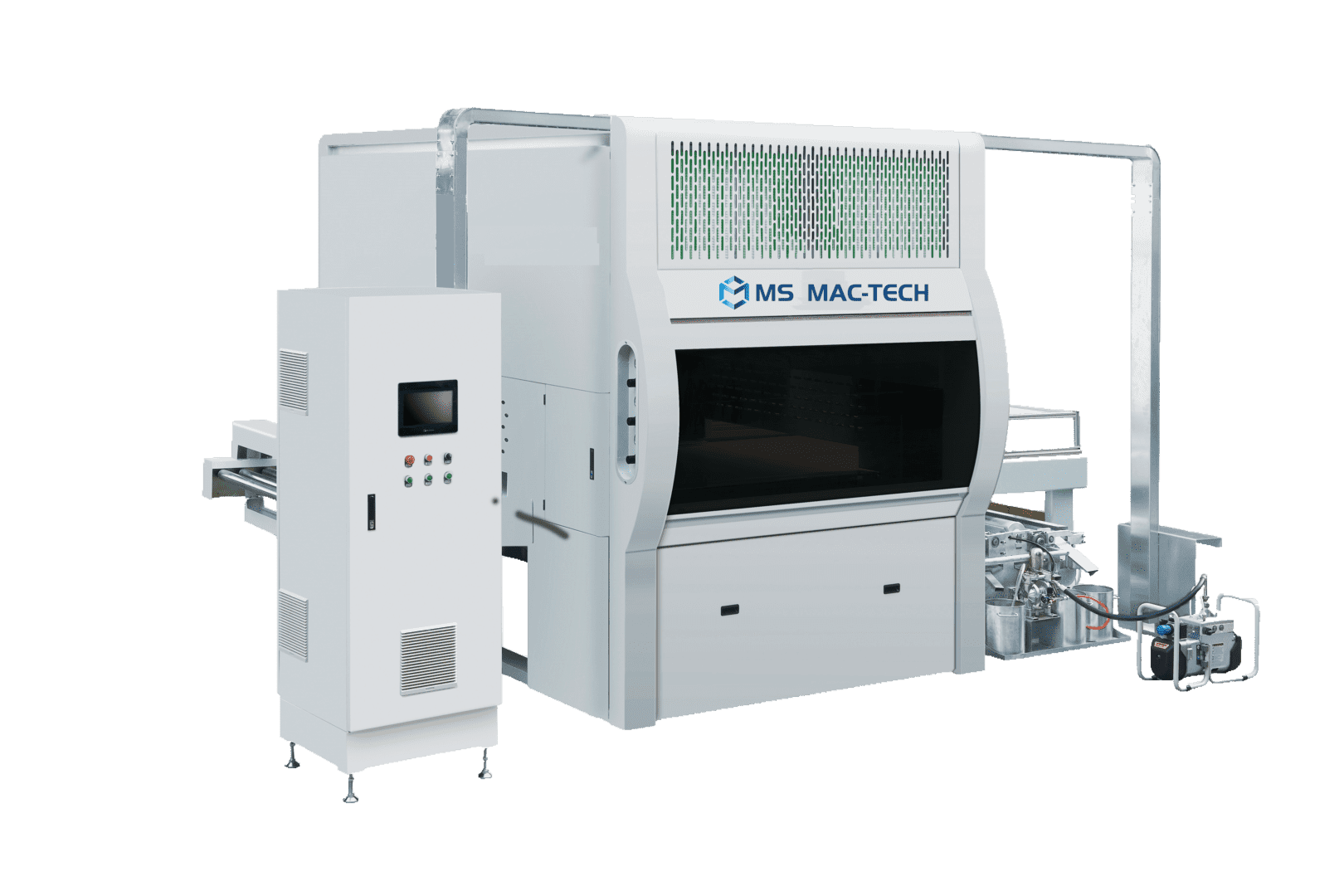

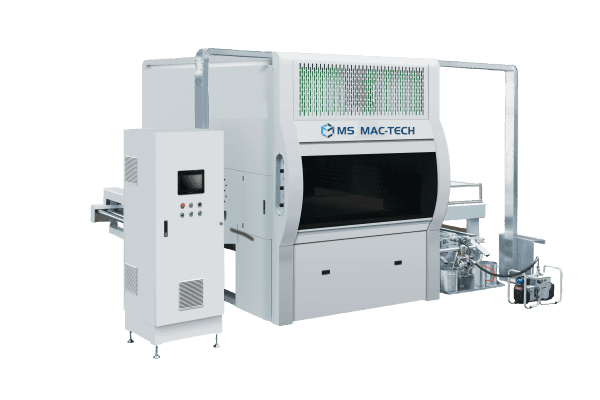

Machine Configuration
Transport system：
- The conveyor system is equipped with an imported PEconveyor belt, which is antistatic, wear-resistant, easy to replace and convenient to clean.
- The reciprocating water recycling system adopts stainless steel recycling equipment. The paint interceptor in the recovery box first effectively intercepts the excess waste paint produced by spraying, and the remaining waste airis filtered by double-layer stainless steel brushes and then processed by the photoionization composite waste gas treatment equipment.
- The precise design and operating guidelines of the cleaning system minimize the daily consumption of solvents.
- The conveying speed is adjusted by frequency conversion, which is suitable for coating requirements of different speeds.
Spraying system:
1.The spray gun holder adopts two-way two groups, and the 4+4 spray gun system is preset, which can effectively spray for each angle of the workpiece.
2.The spray gun is a Wagner or Kremlin spray gun, which can spray paint for each angle of the workpiece. The spray drive is precisely to ensure the precise positioning of the spray paint.
3.Equipped with Panasonic programmable controller PLC and high-precision measuring photoelectric detection system, Different parameter settings can be set according to working conditions. Each spray gun can be individually controlled to on-off.
4.Graphical interface is Facilitated the input of various working parameters and equipment parameters
5.Automatic detection after shutdown: To achieve simplified management of equipment through product report, diagnosis, and fault clearing procedures.
6.Adjustable control of the inlet air volume to adjust the pressure in the spray booth.
| Technical parameters | |
| Reciprocating Spraying Machine | MS RSM-1300 |
| Machine Size(mm) | 5000x4600x2800 |
| Total Power（kw） | 19kw |
| Max. Working Width（mm） | 1200 |
| Working Length（mm） | 300~3000 |
| Working Thickness（mm） | 2-40 |
| Maximum spray speed | 2000mm/min |
| Oil drive | One set of plunger pump |
| Air pressure（Mpa） | 0.6 up |
| Encoders | OW2-06 |
| Motor（kw） | 3 |
| PLC | Panasonic |
| Brand and QTY of Spray Gun | Wagner / Kremlin |
| Spray gun caliber（mm） | 0.38 / base on request |
| Model of Pump | plunger pump |
| Paint mist treatment system | Exhaust air purification tank, air filter, Paint interceptor |
| Power of Inlet and outlet fan（kw） | 4+2.2 kw |
| Conveying speed（m/min） | 0 ~ 15 |
| Delivery Method | PE belt type |
| Type of Paint | UV coating/ pu /water-based paint/etc |
| PC Controller | WEINVIEW |
| Touch Screen | Vinylon |
| Guide rail | TBI |
| Bear | NSK |
| Synchronous belt | MEGA MAX |
| Electrical element | Schneider, Panasonic |
| frequency converter | Japan Panasonic |
| Reducer | Posh |
| Anti-skid device | The belt is anti-skid and anti-deviation |
| air consumption | 8m³/min |
| Maximum exhaust capacity | 18000m³/hour |
| Maximum spray speed | 2000mm/min |
| Interface fonts language | Switch between Chinese and English |
