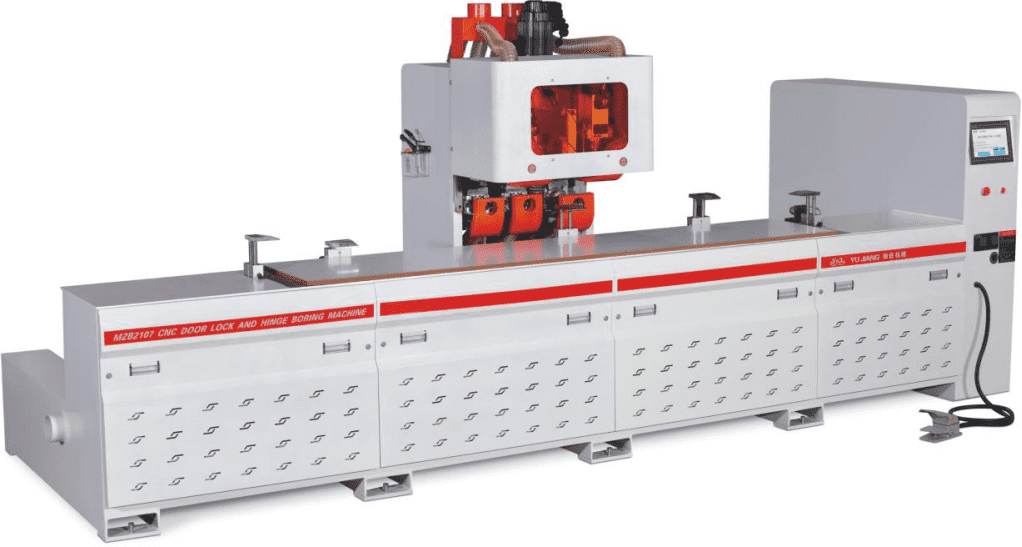

MZB2107 CNC Door lock & hinge Machine

Product description

Machine Application

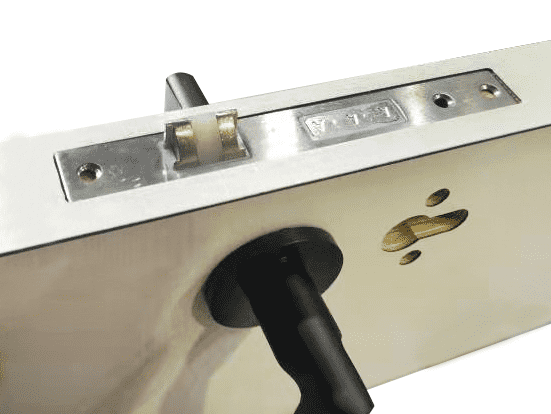

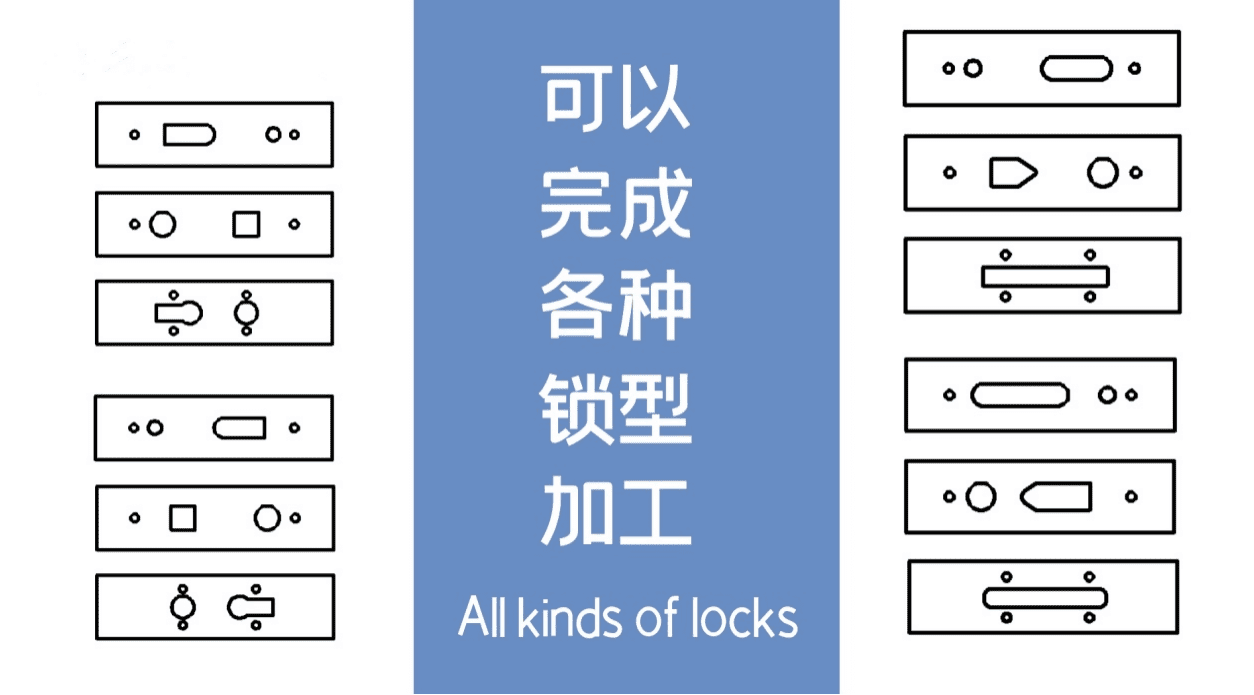

This equipment is mainly used for processing door locks, step locks, hinge holes, latch holes, door closers groove and other processes on wooden doors. This machine is a cart-type table layout, three-axis servo drive, vertical two knives, horizontal three knives, can process a variety of lock types, is a cost-effective intelligent equipment on the market.

Technical characteristics

2.1. Adopts automatic tool setting device, no need manual measuring after changing the tool.

2.2. Adopts automatic thickness measuring device, no need manual measurement of the thickness of the door plate.

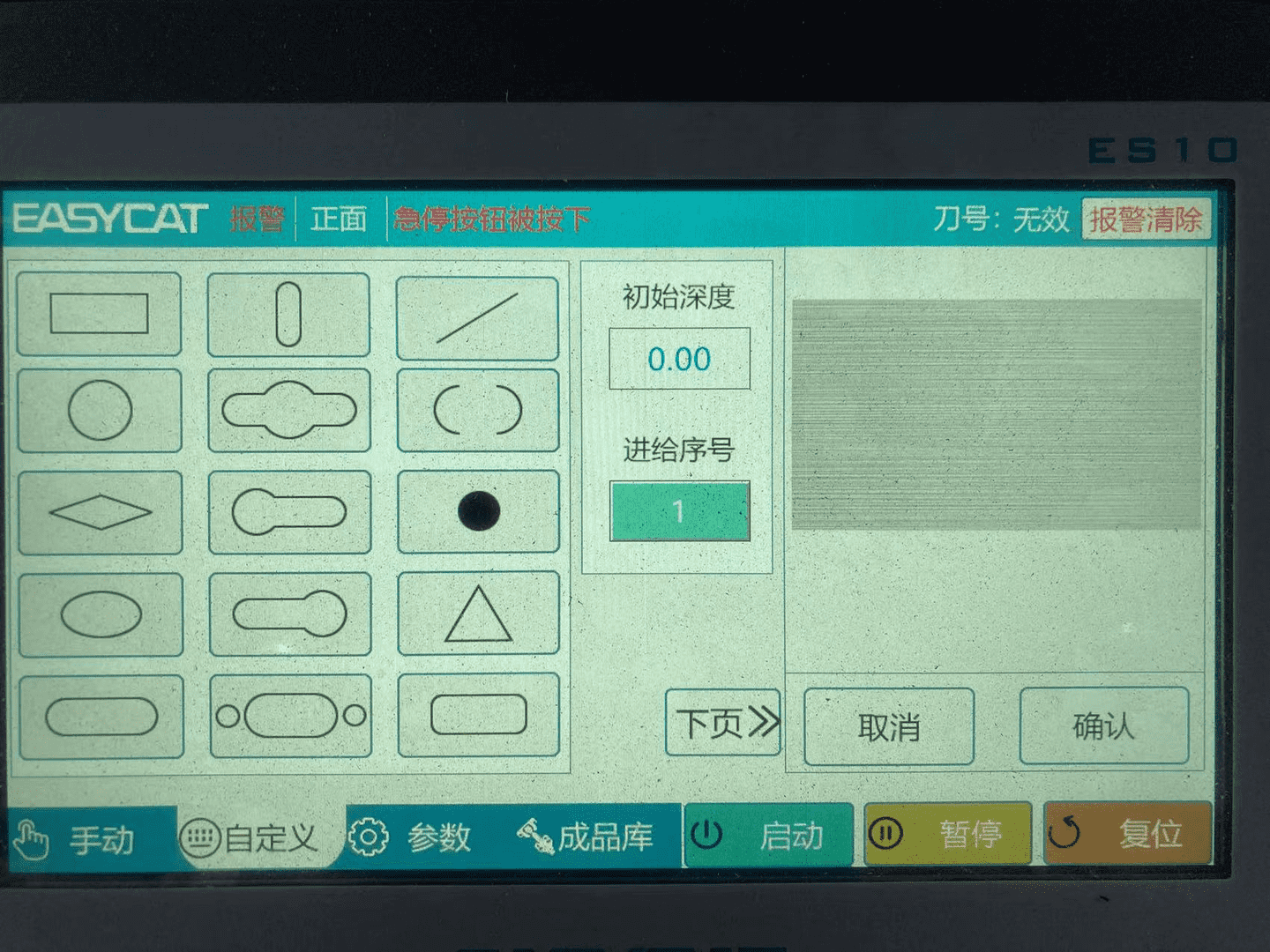

2.3. Intelligent system control, easier to operate.

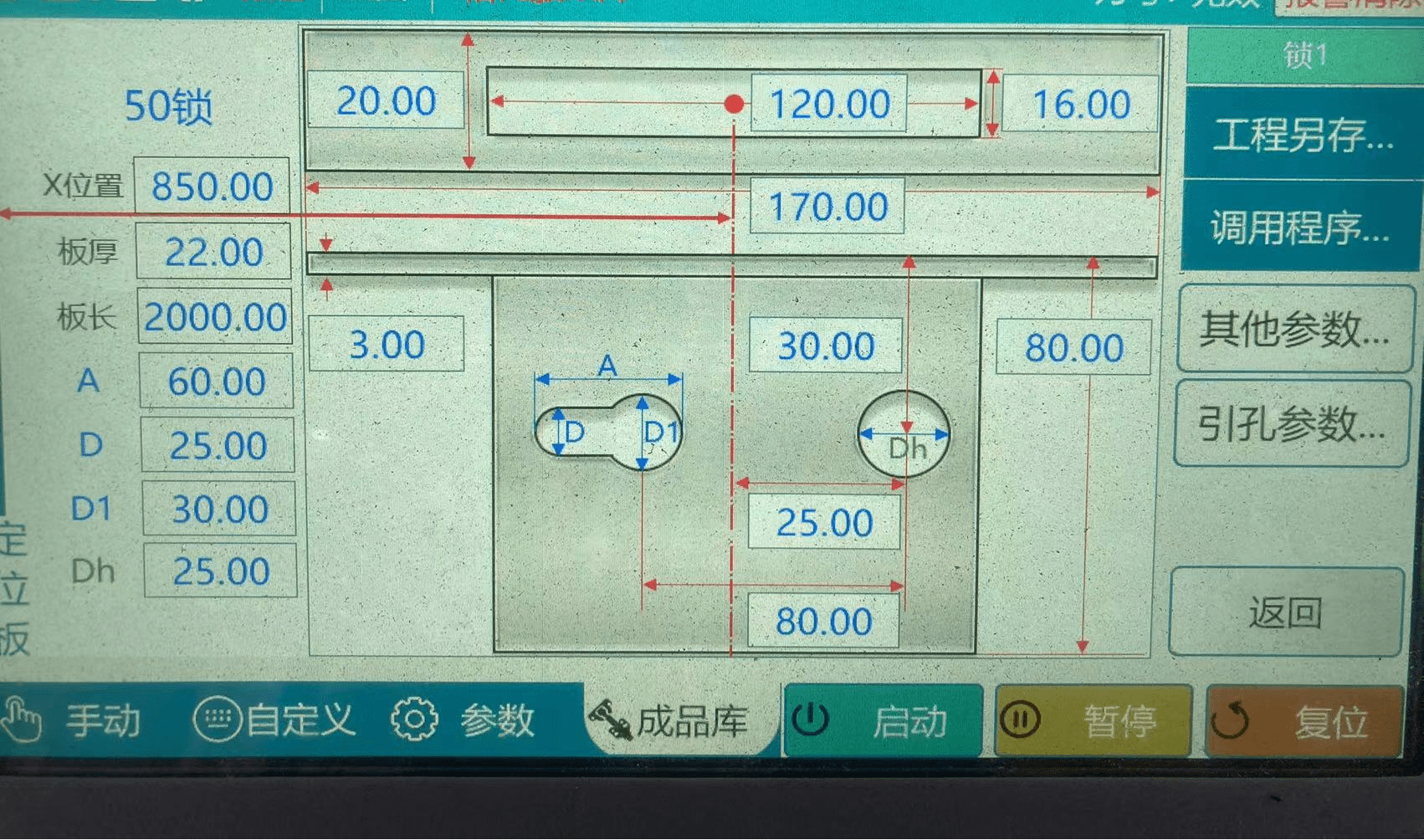

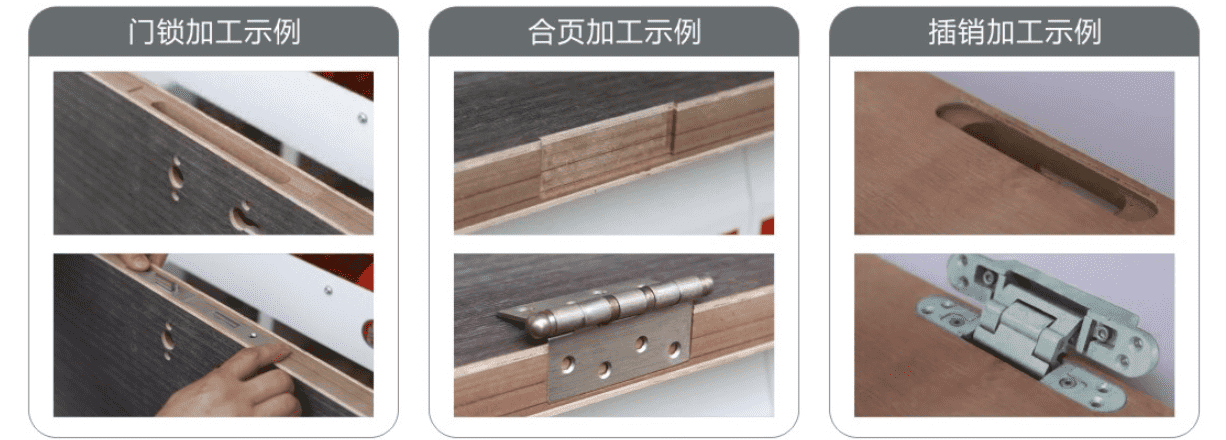

2.4. Built-in a variety of keyholes, hinges, pins and other modules, according to the drawing input parameters can be processed.

2.5. The equipment is equipped with organ dust cover and dust cover, environmental protection and more durable.

2.6. The equipment has a self-diagnosis function, automatic shutdown and alarm in case of accidents.

Main Technical Parameter

Max. Working Length	2800mm
Max. Working Thickness	80mm
Maximum groove depth	120mm
Maximum groove Length	1000mm
Speed of mainshaft	12000r/min
Number of cutter	5pcs
Air pressure	6-8kg
Operating voltage	380V 50HZ
Total Power	12.7kw
Diameter of the suction port	Φ100mmx5pcs
Machine Size	460013001800mm

Main configuration details

Function of each cutter	Horizontal cutter 1	Milling groove
	Horizontal cutter 2	Milling groove
	Horizontal cutter 3	Drilling and milling
	Vertical cutter 1	Drilling and milling
	Vertical cutter 2	Drill hole
Spindle motor configuration	high speed spindle3.7kw	1 pc
	high speed spindle2.2kw	1 pc
	high speed spindle1.1kw	3 pcs
	Brand	Tianyi
guild rail	X axis	Precision grinding rack
	Y axis	TAIWAN TBI linear guideway
	Z axis	TAIWAN TBI linear guideway
lead screw	Y axis	TAIWAN TBI ball screw
lead screw	Z axis	TAIWAN TBI ball screw
Control System	Brand	Independent research and development system
