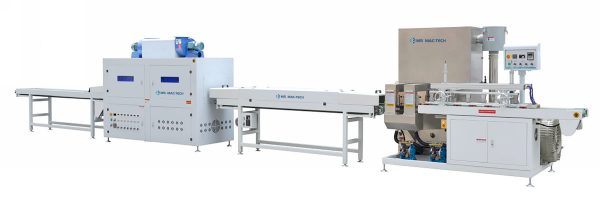

Linear Vacuum Coating Machine Line

Product description

Vaccum Coating Machine:

working width: 20-230mm

working thickness: 10-80mm

working length: 600-60000mm

conveying speed: 15-30m/min

fan power: 12.5kw

conveyor power: 0.4kw

Machine size: 2000x1800x1400mm





Seven Lamps UV Curing Machine:

working width: 20-230mm

working thickness: 10-80mm

working length: 600-60000mm

conveying speed: 10-30m/min

uv lamps power: 3kw x 7

fan power: 1100kw x 3

Machine size: 2200x800x2100mm





10M IR Drying Tunnel

Working width:230mm

Working thickness: 10-80mm

Working length: 600-6000mm

Machine size: 10000x500x1100mm





Belt Conveyor:

Working width: 20-200mm

working thickness: 10-80mm

workiing length: 600-6000mm

machine size: 2500x500x1100mm
