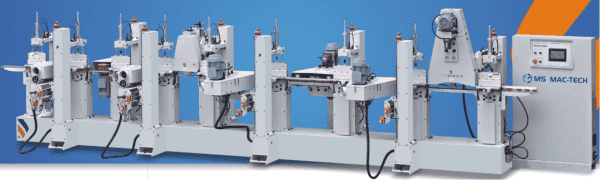

Linear Automatic Sanding Machine

Product description

The picture is for reference only

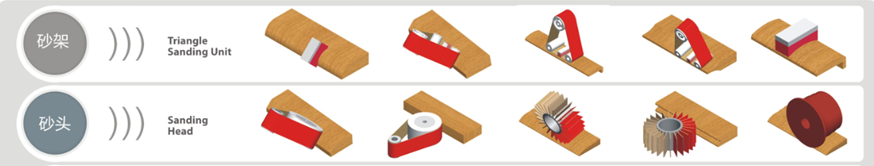

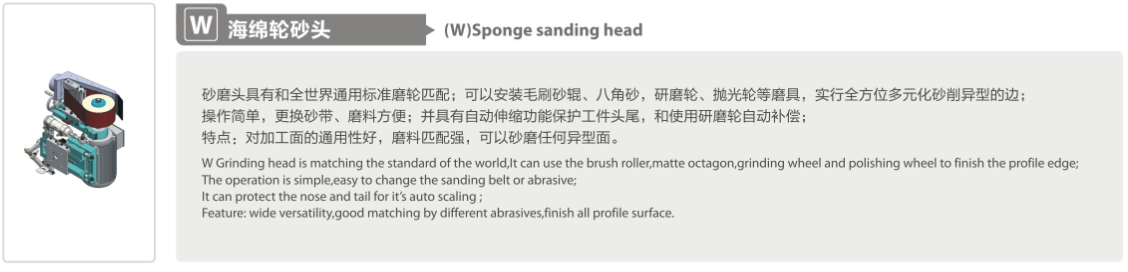

1、Equipment parts description:

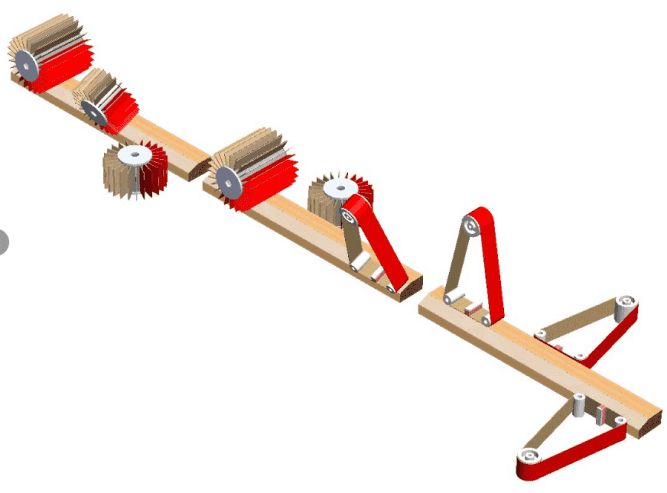

4、sanding process layout:

5、Characteristics of the equipment:
Various sand units can be arranged and configured freely according to different technological requirements

Sanding units can be adjusted -90°~0° or 0°~+90°, is suitable for linear profile sanding

Triangle sander with oscillating device, wheel sander is equipped with an oscillating device to make full use of the abrasive and leave no sand mark.

Use pneumatic pressure material, spring load, reliable pressure material, do not damage the workpiece

Accurate PLC control, convenient adjustment.

The conveyance and sand-belt speed are adjusted by frequency conversion to suit the sanding of different wood products.(wooden, veneer, MDF, painting)

According to the different shapes of the workpiece, select different power motors and various shapes, functions of abrasive material

7、Technical parameters:

Model MS-S4W5
Workpiece width range 30~200mm
sanding width range 30~150mm
Workpiece min length 700 mm
Workpiece thickness range 10-65mm
Feeding speed 3-25m/min
Feeding motor 9pcs,380V、50Hz、0.25KW、1430r/min
Triangle sanding motor 4pcs,380V、50HZ、1.5KW、1430r/min
Oscillation motor 4pcs,380V、50Hz、0.025KW、1430r/min
Wheel sanding motor 5pcs,380V、50Hz、1.5KW、1430r/min
Triangle sanding belt size 2160mm X 80mm × 4pcs
polishing wheel size 1 Φ280×150mm × 1pc
polishing wheel size 2 Φ280×100mm × 4pcs
Sanding wheel tilt angle -90°~0° or 0°~+90°
Triangle Sander tilt angle -90°~0° or 0°~+90°
Work pressure 0.6mpa
Total power 15.85KW
oversize 7600mmX1800mm(1500mm)X1500mm
