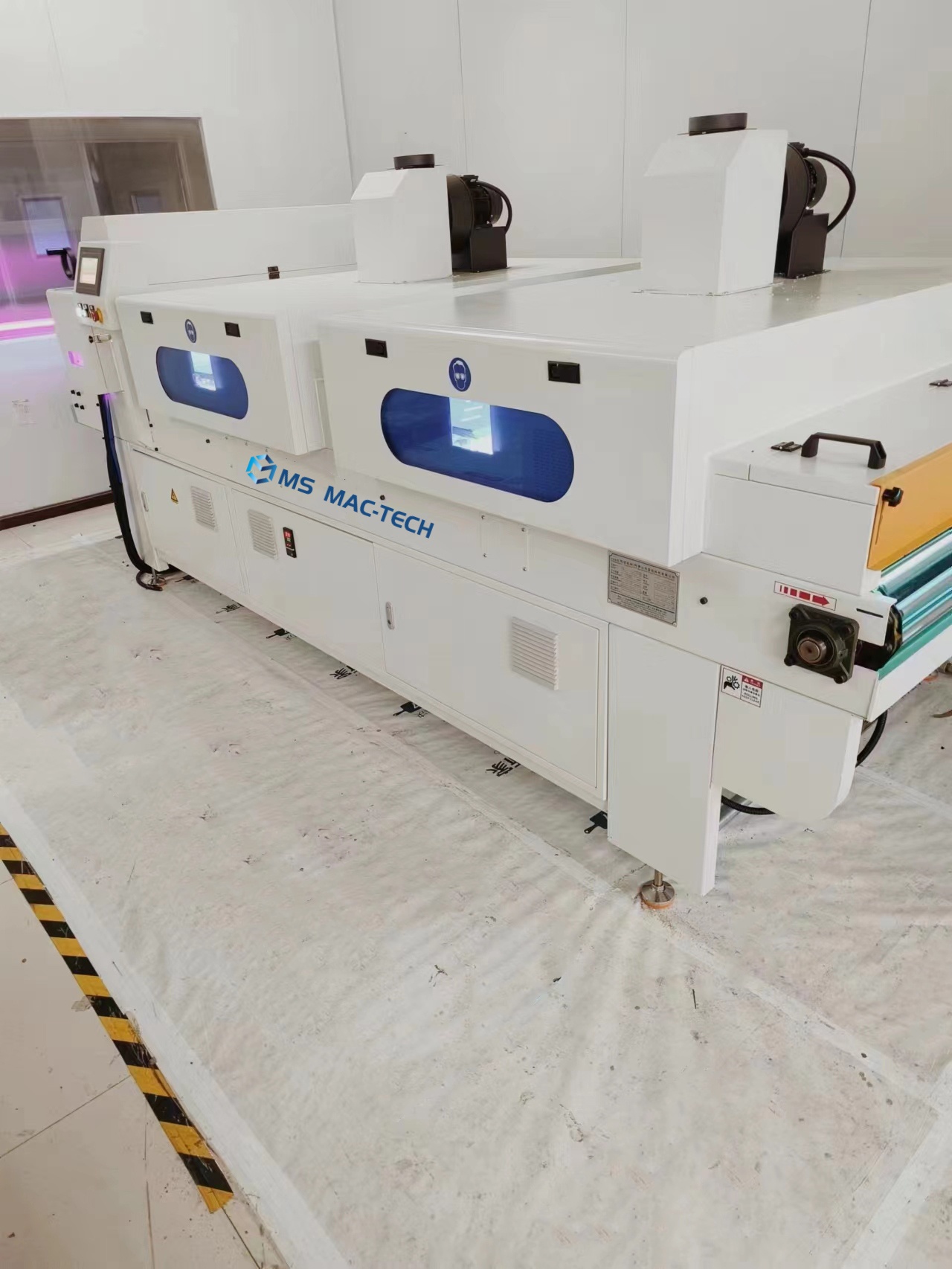

1300mm Excimer Supper Matt Machine

Product description

Machine Configuration
Equipment composition: an external LED pre-curing system, a roller conveyor system integrated with an excimer light reaction system (including 4 groups of 32 excimer lamps in total);

Control system: including one-button start, single-module manual start, and temperature control system.

Equipments required to configurate by customers themselves:

10. 0.5MPA air source

11. 50HZ, 415V thr



Model JXY ESM-1300
Working Width(mm) 1300
Working Thickness (mm) 3-80
Feeding Speed (m/min) 5~15
Shortest Convey Length(mm) 300
Diameter of exhaust pipe 2*φ125mm
Total Power(kw) 12
Machine Size(mm) 3800x1900x1750



ee-phase power source
